The HAWKER HURRICANE (one of our most successful designs) is scaled at 2.3 inches to the foot. The plans show all structures drawn full size including the installation of flaps and retracts.

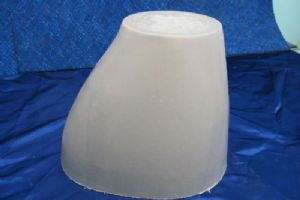

The parts available are: a fiberglass cowl, a fiberglass belly scoop, clear plastic canopy, a set of 6 vacuum-formed dummy exhaust stacks, carb intake scoop and an aluminum spinner and backplate.
Primary construction is light plywood, balsa and spruce or pine using conventional building techniques. All structures are built-up. The rear portion of the fuselage and all control surfaces are prototypical fabric covered while the forward portion of the fuselage is sheeted with 1/8” balsa. The wings and stab are sheeted with 3/32” balsa
Specifications of the Hurricane Wingspan: 92 inches Wing Area: 1420 sq.inches Overall Length : 74.25 inches: Weight: 22 - 26 Lbs Engines: Quadra Q-42, Q-50, Sachs 3.2 - 4.2
