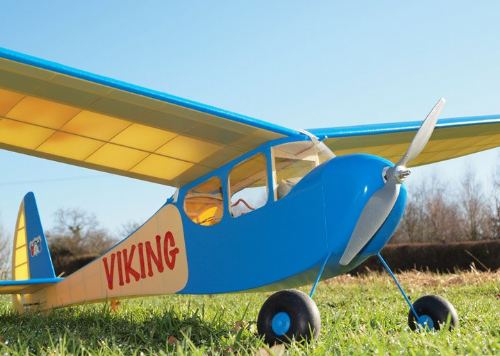

A 62" wingspan version of the Viking. Builds into a pretty looking, with a superb thermal performance.
Traditional all wood construction with V dihedral and three channel control. We have always flown our Vikings with electric motors and are now using the Hacker A30-12M from West London Models. The model includes a motor mount/spacer for this setup. Any 200W is suitable that can be radially mounted. Our suggestion for power system is the following from 4-Max
Motor PO-3541-1070 £33.49http://www.4-max.co.uk/po-3541-1070.htmlESC 4M-ESC40A £28.95http://www.4-max.co.uk/4m-esc40a.html--------------------------------------Prop JXF 11x6 £ 9.68http://www.4-max.co.uk/jxf-props.htmBattery PPL-40C3S-1800 £21.10http://www.4-max.co.uk/lipos.htmThis setup will give approx 3.0lbs of static thrust
Parts set includes all shaped balsa and plywood parts, such as formers, bulkhead, wing ribs, tip shapes for wing, tail and fin, plus a full size plan. The new Parts Set also includes a vac-formed cowl to simplify the build.
While strip wood and sheets are not part of our standard parts sets, we do provide an option to include an additional wood pack that contains all the necessary wood to complete the airframe.
The Viking won the 2015 SAM35 Duration contest at the FF Nats, Barkston Heath. Our winning model used a 1200mAh 3 cell Lipo and the Hacker motor setup, giving around 300 watts. Backing up our success in 2015, the Viking also won Vintage Duration at the Nationals in 2016.
