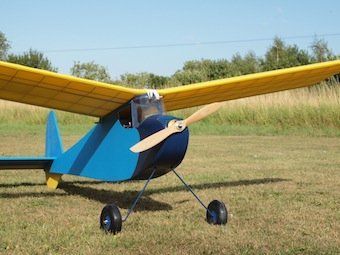

Following good interest in our 120" Tomboy that debuted at Old Warden in July, we are now producing a 72" Tomboy . Based on the original FF plan outlines and profiles, but fully redesigned for RC and the loads that brings.
The fuselage is 3/8" sq balsa and the wing is now a one piece multi-spar design with twin dihedral braces and built up sheet trailing edge.
Suitable for 40 size 4 strokes or electric motors - we used an AXI 4120/14.
What is in the box?
The 72" Tomboy Parts Set includes 26 wing ribs, block wing tips, 14 tailplane ribs, 2 center ribs in 3/16" balsa and tailplane tips, 2 formers in liteply, 2 off 1/4" Birch ply bulkheads - one ic and one electric, plus an electric mount/battery box, landing gear plate, 2 dihedral braces in Birch ply, shaped fin components and rudder - 3/8" balsa, various gussets, 'instrument panel' and cabin/wing seats, plywood RC tray with cut-outs, plus 1/4" shaped infill sheeting for fuselage sides, tail plane mounts and also a 1/4" balsa sub-fin and strengthener. Also included are cowl cheeks laminated and 2 off 1/16" plywood cowl cheek doublers, rudder horn for closed loop.
You have the option to purchase either the laser-cut parts set alone or in conjunction with an additional wood pack, which includes all the necessary wood to construct the airframe. Additionally. Covering is to be supplied by the builder.
Specifications: Wingspan: 72", weight 6-8lbs, our model is covered in Solartex and uses Savox standard servos and an AXI 4120, Castle Creations 70A ESC and Thunderpower 65C 3 cell Lipo 1800mAh battery for around 10 minutes constant power.
